Fish Feed Cooler Machine for Fish Feed Production Plant

Fish Feed Cooler Machine for Fish Feed Production Plant

Model

SLNF

Capacity

1-8t/h

Temperature

≦3-5℃ of the room temperature

The reduction of moisture content

≥3.5%

Mixing timePressure of air

0.002MPa

Absorbing Air Quantity

m3/min·t

Send Email

Chat now

Share With :

Description

Features

Parameters

Inquiry

Description

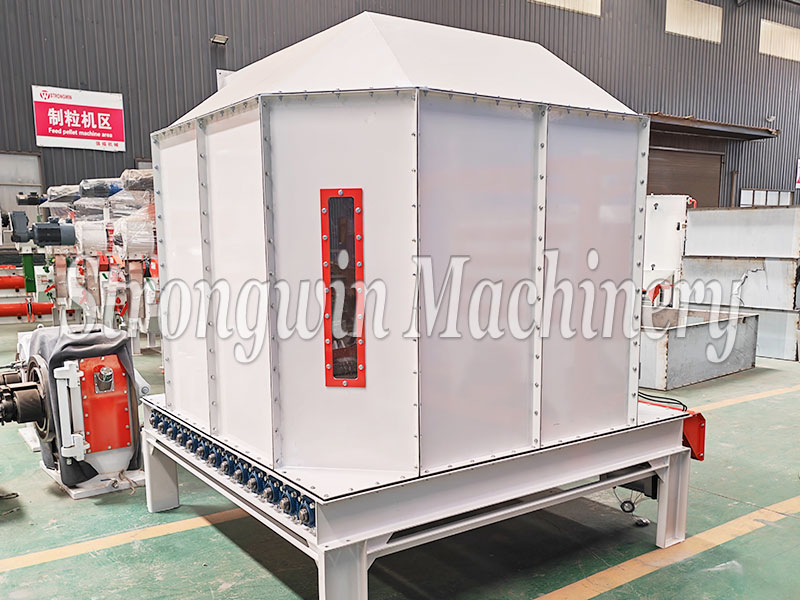

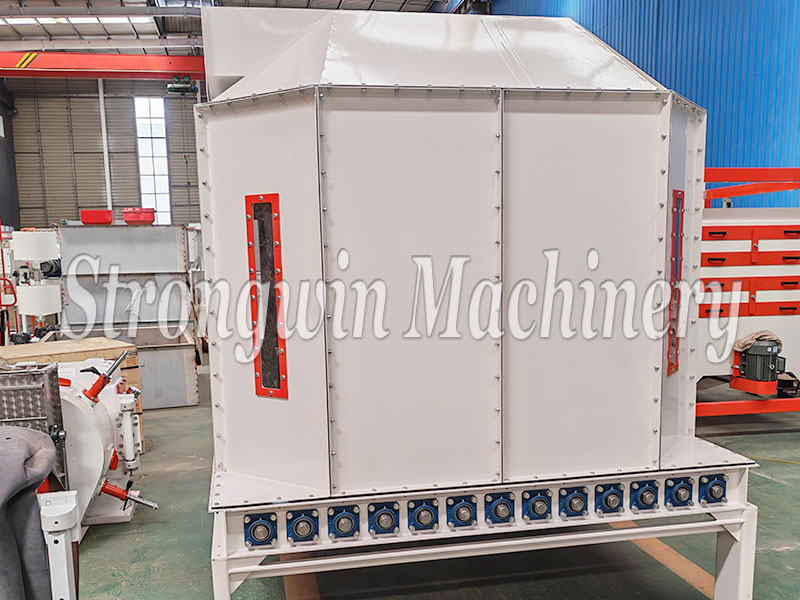

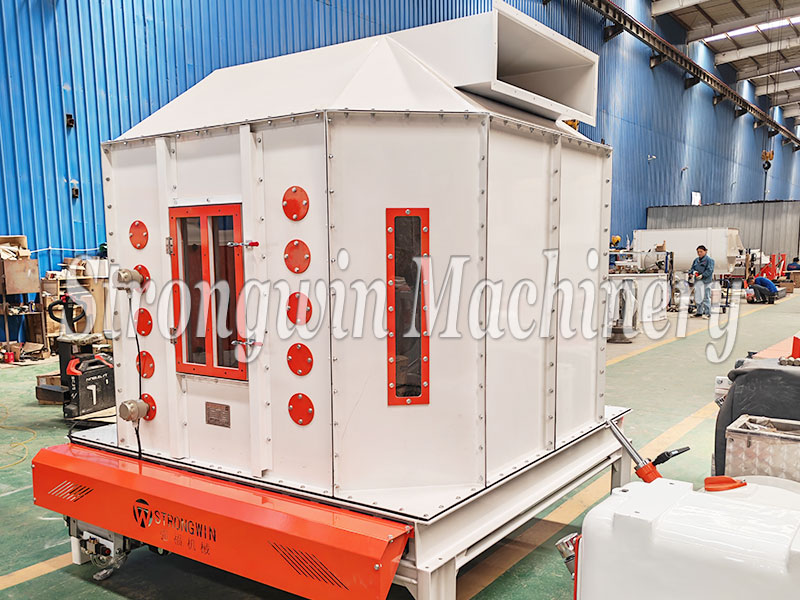

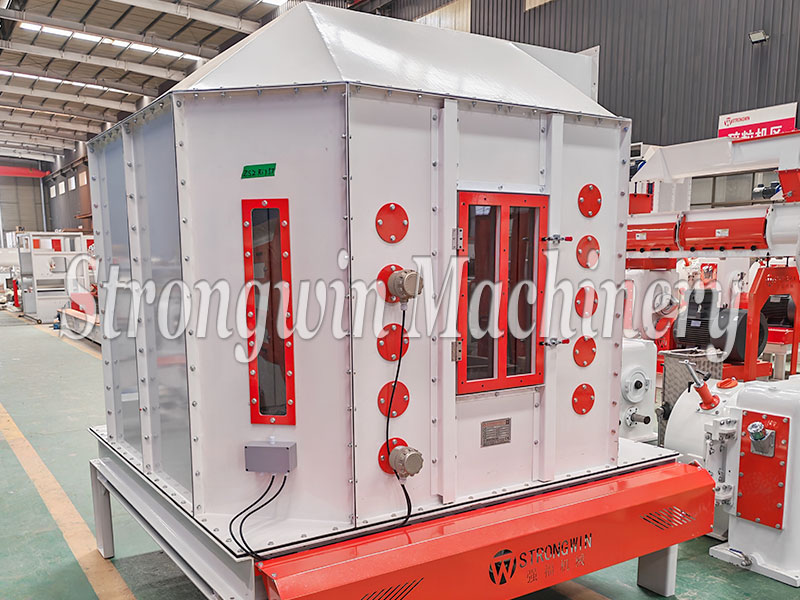

Fish Feed Pellet Cooler

Cooling is a process of removing heat. As we know during conditioning we add heat and moisture and also through the palleting process heat generates by the extrusion process. But the pallet should have standard moisture and heat to attain its life of storage and make it safe from fungus. So we have to remove extra heat and moisture from the pallet. All this is done with the help of a well-designed cooler.

Simple

Affordable

Uniform

Smooth Material Flowing

Less residue

Convenient Operation

Detailed instructions of Fish Feed Cooler

SLNF series feed cooler is suitable for cooling various kinds of pellets such as pelleted feed, expanded feeds, extruded feeds, and flake feeds, etc.

SLNF series feed cooler is structurally arranged vertically, the appearance is simple and beautiful;

Its smooth material flowing and uniform discharging

No dead cooling corner, which is beneficial to the cooling treatment of materials;

Ensures materials for uniform and complete cooling with reduced breakage, featuring an adjustable range of material distribution and lowered power consumption;

Application

After cooling the finished product temperature is not higher than room temperature+3 ℃ ~ 5 ℃, suitable for the cooling of granular materials.

After installation and adjustment,we will train our customers work how to operate;

Training worker how to maintain and protect

According to features, we will make complete maintenance rules for you, containing how to maintain, when to maintain, and who maintains)

Our company after-sale department will call you at regular intervals, ask if maintain and give advice.

Features

Fish Feed Pellet Cooler Features

The latest octagonal cooling box design, no cooling dead ends.

The use of closed feeder feed, into the air area, cooling effect is significant.

The movement is smooth, reliable, small residue.

Low energy consumption, easy operation.

The use of an adjustable type of loose material, so that the material evenly and evenly stacked in the cabin.

Super quality of Henan Strongwin Fish Feed Pellet Cooler

Material thickness of main equipment is more than feed machinery standard 2mm;
The weight is heavier than feed machinery by 20%.
Output higher 20%;
The feed rate of return increases by 3-5%.

Parameters

Model	SLNF1.1	SLNF3.0	SLNF6.0
Capacity (t/h)	1-2	3-4	6-8
